Name:	GYFXY Outdoor Fiber Optic Cable
Model NO.	GYFXY

Product Description

GYFXY Outdoor Fiber Optic Cable

SPECIFICATION:

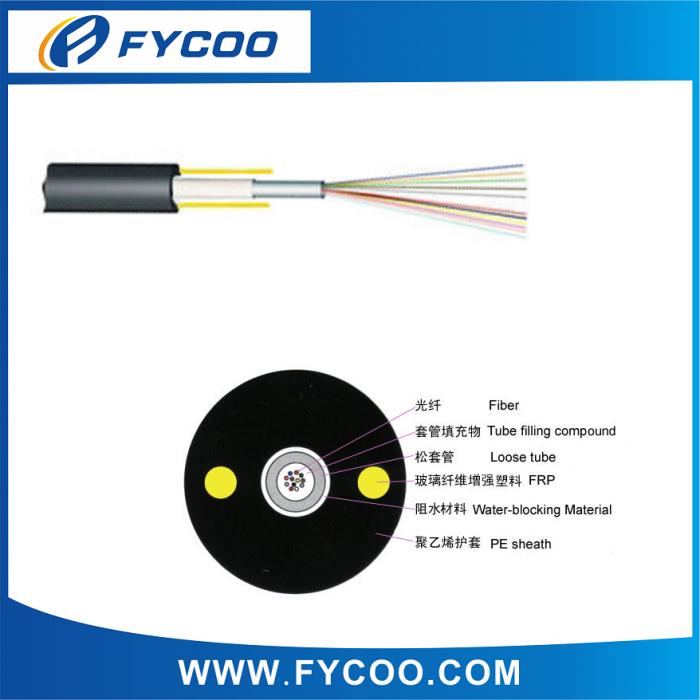

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

CHARACTERISTICS:

1.Good mechanical and temperature performance

2.High strength loose tube that is hydrolysis resistant

3.Special tube filling compound ensure a critical protection of fiber

4.Two parallel FRPs ensure tensile strength

5.PE sheath protects cable from ultraviolet radiation

6.Small diameter, light weight and friendly installation

7.Long delivery length

STANDARD:

GYFXY cable complies with Standard YD/T 769-2003.

Optical Characteristics

FIBER CHARACTERISTIC:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm
