Name:	GYHTY Outdoor Fiber Optic Cable
Model NO.	GYHTY

Product Description

GYHTY Outdoor Fiber Optic Cable

SPECIFICATION:

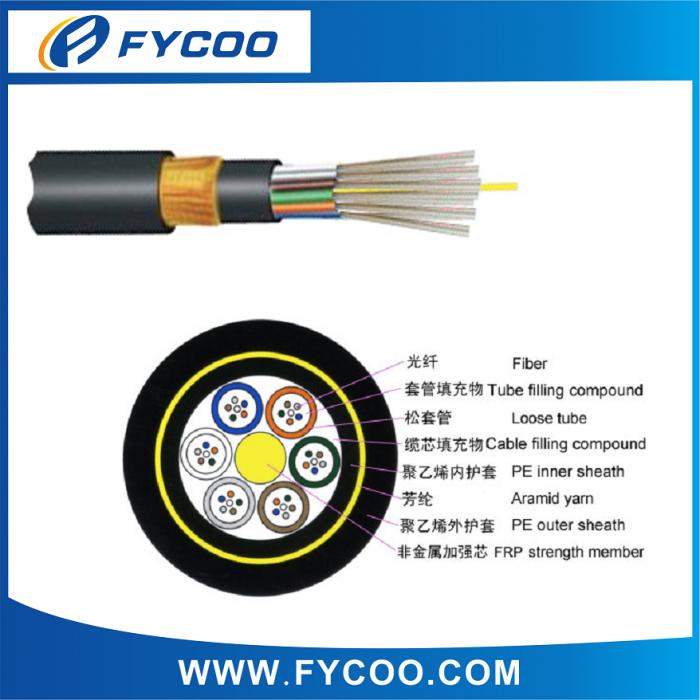

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

CHARACTERISTICS:

1.Good mechanical and temperature performance

2.Aramid yarn strength member ensures good performance of tensile strength

3.High strength loose tube that is hydrolysis resistant

4.Special tube filling compound ensure a critical protection of fiber

5.Crush resistance and flexibility

6. The following measures are taken to ensure the cable watertight:

-Single Fiber Reinforced Plastic as the central strength member

-Loose tube filling compound

-100% cable core filling

STANDARD:

GYHTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Characteristics

FIBER CHARACTERISTIC:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

TECHNICAL PARAMETERS:

Cable Type	Fiber Count	Tubes	Fillers	Cable Dia mm	Cable Weight kg/km	Tensile Strength Long/Short Term	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYHTY-2~6	2~6	1	5	11.0	100	600/1500	300/1000	10D/20D
GYHTY-8~12	8~12	2	4	11.0	100	600/1500	300/1000	10D/20D
GYHTY-14~18	14~18	3	3	11.0	100	600/1500	300/1000	10D/20D
GYHTY -20~24	20~24	4	2	11.0	100	600/1500	300/1000	10D/20D
GYHTY-26~30	26~30	5	1	11.0	100	600/1500	300/1000	10D/20D
GYHTY-32~36	32~36	6	0	11.0	100	600/1500	300/1000	10D/20D
