Name:GYFTY53 Outdoor Fiber Optic Cable
Model NO.GYFTY53

Product Description

GYFTY53 Outdoor Fiber Optic Cable


SPECIFICATION:

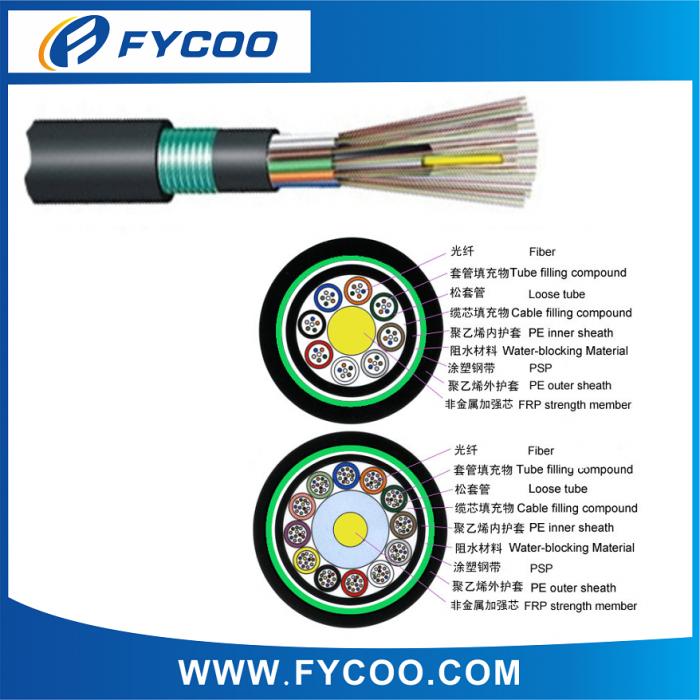

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.

CHARACTERISTICS:

1.Good mechanical and temperature performance
2.High strength looes tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
 -Single Fiber Reinforced Plastic as the central strength member
 -Loose tube filling compound
 -100% cable core filling
 -PSP enhancing moisture-proof
 -Water-blocking material

STANDARD:

GYFTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics

FIBER CHARACTERISTIC:



G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm





TECHNICAL REQUIREMENTS:

Cable Type

Fiber Count

Tubes

Fillers

Dia

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term N/100mm

Bending Radius

Static/Dynamic mm

GYFTY53-2~6

2~6

1

7

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-8~12

8~12

2

6

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-14~18

14~18

3

5

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-20~24

20~24

4

4

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-26~30

26~30

5

3

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-32~36

32~36

6

2

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-38~42

38~42

7

1

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-44~48

44~48

8

0

15.8

230

1000/3000

1000/3000

10D/20D

GYFTY53-50~60

50~60

5

3

16.8

255

1000/3000

1000/3000

10D/20D

GYFT Y53-62~72

62~72

6

2

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-74~84

74~84

7

1

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-86~96

86~96

8

0

16.8

255

1000/3000

1000/3000

10D/20D

GYFTY53-98~108

98~108

9

1

19.2

320

1000/3000

1000/3000

10D/20D

GYFTY53-110~120

110~120

10

0

19.2

320

1000/3000

1000/3000

10D/20D

GYFTY53-122~132

122~132

11

1

21.2

380

1000/3000

1000/3000

10D/20D

GYFTY53-134~144

134~144

12

0

21.2

380

1000/3000

1000/3000

10D/20D
