Location:Index--->Product Center >> Patch Panel & Wire manager >> Integrated design Cat 6A UTP Patch Panel

Name:	Integrated design Cat 6A UTP Patch Panel
Model NO.	FCPP6A24024

Product Description

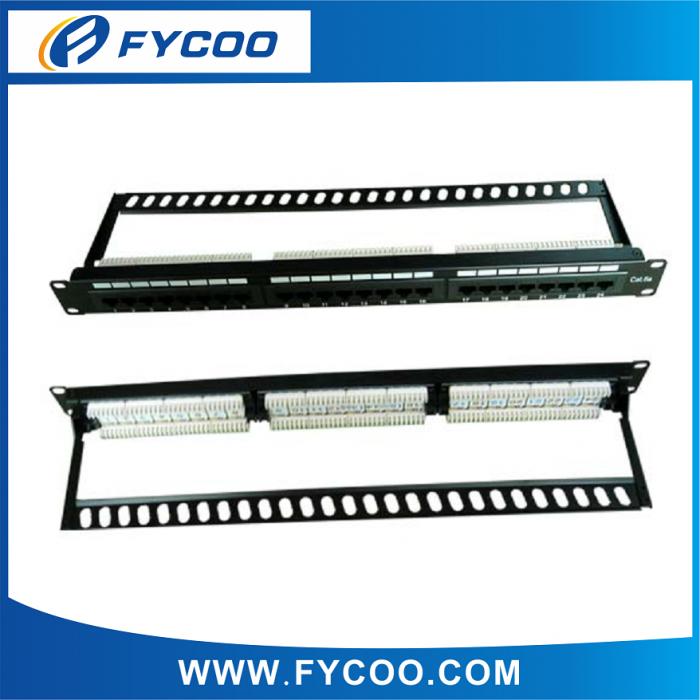

Integrated design Cat 6A UTP Patch Panel

SPECIFICATION:

1. Adapt Snap-in way to install its module disposition has higher flexibility and suitability. The window of the label is furnished with removable label one, help users manage.

2. The round rear rough part protect the wire drop off and broken

3. The jacks can be changed

4. Insulation Resistance: 10 MΩ min ; 1000V 60HZ,1 min.

5. Contact Resistance: initial 20MΩ typical

6. Operating Temperature Range : -10 to 60

7. Scope of Application: 24-26AWG

8. Plug /Jack Contact Force: 100g min

9. Humidity: 5 to 93%( non condensing)

Pre:Cat5e UTP 48 Ports Patch Panel（Double USE End） Next:Cat6A UTP 24 Ports Patch Panel
