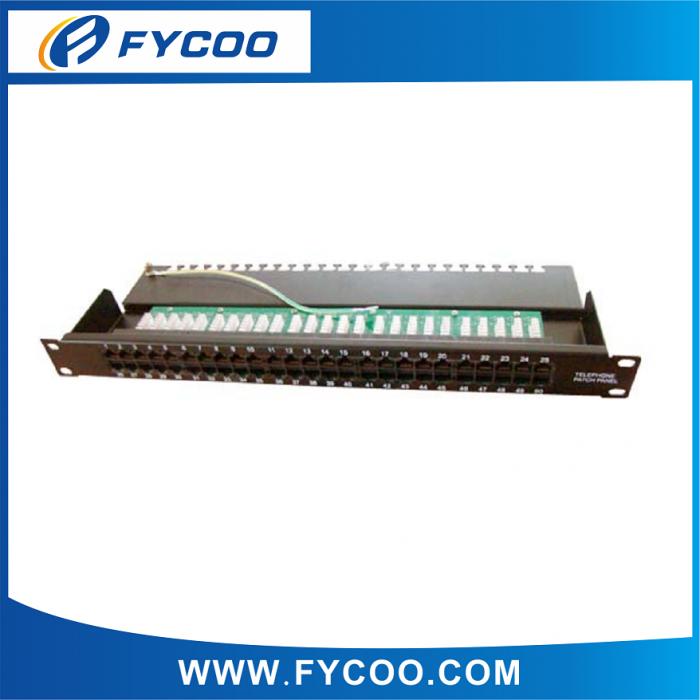

50 Port Telephone Patch Panel

ELECTRICAL：

1.VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE:100 MILLIOHMS MAX

4. INSULATION RESISTANCE :1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH:750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE:-40°TO +85°

2.OPERATION:0° TO 70°

CONFORM TO ANSI/TIA/EIA 568B CATEGORY 3

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68

MECHANICAL:

1. HOUSING MATERIAL :PBT+15%GF UL94V-0

2.PANEL FRAME:CARBON STEEL,POWDER COATING IN BLACK COLOR

3. CONTACT MATERIAL:PC UL94V-0 CONTACT:PHOSPHOR BRONZE WITH NICKEL PLATING

4. RJ45 JACK LIFE :750 TIMES MIN

5.IDC LIFE:200 TIMES MIN

6.WIRE:AWG 24~26
