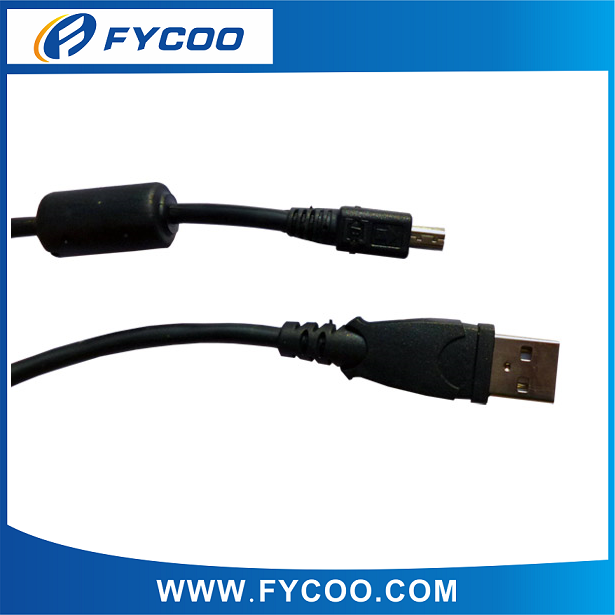

USB AM to USB mini 4pin male cable

USB 2.0 cable PVC molding

Model：FCEBAN208

Specifications:

USB 2.0 Cable

USB AM TO Mini 4 pin MALE

Connector : Nickel or Gold  plated

Conductor: Copper

Color: Black or Beige

PVC molding

Cable specification :

CABLE:UL2725 28AWG(7/0.12CCS)*1P+26AWG(7/0.16CCS)*2C+ 1+AL OD:3.8 or 4.0MM，COLOR:BEIGE OR BLACK

ITEM:USB "A" MALE TO MINI USB 4PIN MALE

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

                  l

Package:

Polybag , PE bag ,blister
