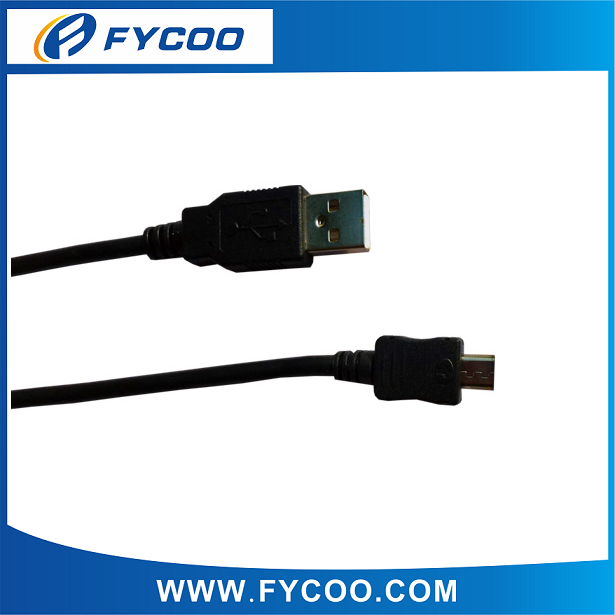

USB AM to MICRO 5Pin Male Cable

MICRO USB CABLE

Mobile data&charger cable

Model：FCEBAC209

Specifications:

USB 2.0 Cable

USB AM TO  Micro 5 pin MALE

Connector : Nickel or Gold  plated

Conductor: Copper

Color: Black or Beige

PVC molding

CCA or copper conductor optional

Cable specification :

USB A M to micro 5 pin,28AWG+28AWG，

Cable Specification: 28AWG(7/0.12CCS)*1P+28AWG(7/0.12CCS)*2C+ 1+AL

OD: 4.5MM

Full copper conductor, #64 Braid, Black

Electrical:

100% open & short test

HI-pot: DC 300v 10ms

Insulation Resistance:10MΩ /300V MIN

Contactivity: Resistance: 0.01Ω MAX

Working temperature: -25oC to +85oC

                  l

Package:

Polybag , PE bag ,blister
