Name:	Fiber Optic Splice Closure Waterproof Dome two inlets/outlets(2Entry 2Exit ABS Material)
Model NO.	FCFEDA213

Product Description

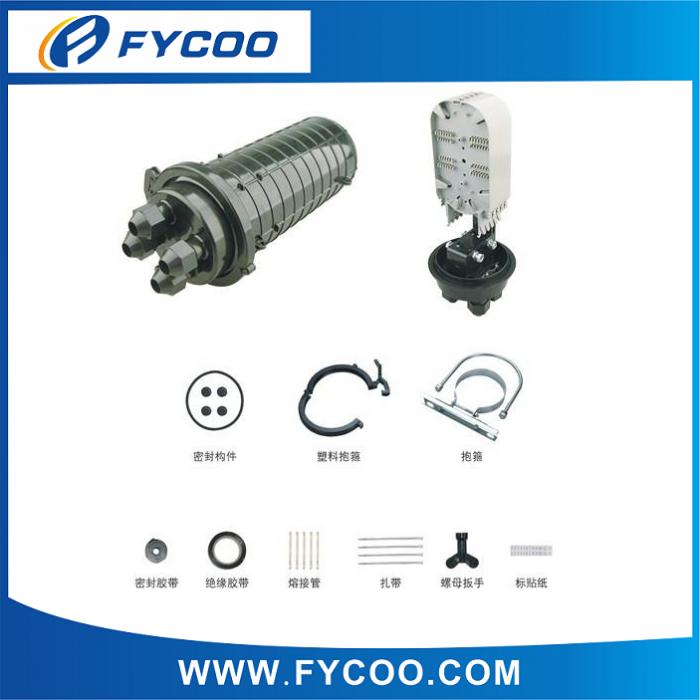

Fiber Optic Splice Closure Waterproof Dome two inlets/outlets(2Entry 2Exit ABS Material)

Type: Waterproof Dome Fiber Optic Closure two inlets/outlets

FEATURE:

Purpose: aerial, wall-mounting, Pipeline laying way

external dimensions:460mm*160mm （Erect type）

Cables Entry & Exit：2Entry 2Exit

Cable Diameter (mm): Φ7-Φ25

Material: ABS

Weight: 2.1kg（Erect type）

Maximum capacity: 96cores

Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring

SPAN-LIFE: 20 years.

SPECIFICATION:

Environmental temperature: -40℃ to +65℃

Atmospheric pressure: 70∽106KPa

Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won’t attenuate during the FOSC installation operation period.

Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.

Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation

Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

Insulation resistance: ≥2X104MΩ

APPLICATION:

It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network

Uses and properties:

It is belonged to open structure airproof tie-in system of machine pressure.

It is used for the protective connection between two or more optical cables

Suitable for single core fiber optic cable and ribbon fiber optic cable
