Name:Rack-mount Fiber Optic Distribution Frame 24 cores
Model NO.FCFDR2402

Product Description

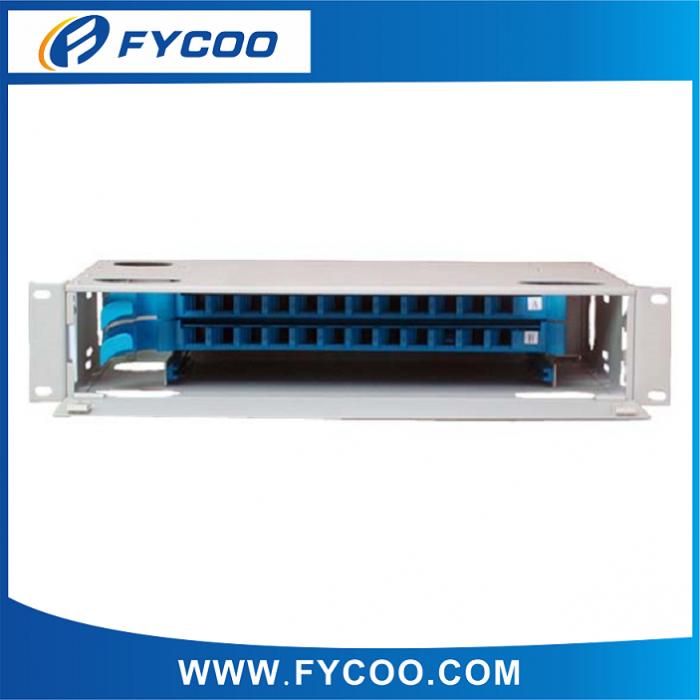

Rack-mount Fiber Optic Distribution Frame 24 cores


Fiber quantity: 24 cores
Rack-mount Fiber Optic Distribution Frame is modulized design with drawable trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.

SPECIFCIATION:
1. Material: Cold Rolled steel,
2.Thicness: 1.2mm
3.Surface cleaning and anti-static plastic plating
4.Operating temperature:-40℃- 85℃
5.Operation humidity: ≤85% (30 ℃)

6. FC/ST/SC Adapter suitable

Model

Core Count

Height

Dimension(cm)

Weight(kg)

Remark

FCFDR14432

144

7U

49x30.5x31.15

17.1

1. Can be used in 19'', 23'' standard distribution frame

2.There is still more space for the fiber storage in 24F, 36F, 48F, 96F

FCFDR9606

96

5U

49x30.5x22.25

11

FCFDR7205

72

4U

49x30.5x17.8

9

FCFDR4804

48

3U

49x30.5x13.35

7

FCFDR3603

36

2U

49x30.5x8.9

5.7

FCFDR2402

24

2U

49x30.5x8.9

4.6

FCFDR1201

12

1U

49X30.5X4.5

3.6



FEATURE:

1.Standard size, light weight and reasonable structure
2.Splice tray inside changeable
3.Suitable for ribbon and single fiber
4.Various panel plate to fit different adapter interface
5.Front mark on the plate is easy for identification and operation
6.24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
7.Easy for management and operation


APPLICATION:

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
