Name:	LC Fiber Optic Connector
FCFCLS05	SM，SIMPLEX 0.9MM/2.0MM/3.0MM
FCFCLM06	MM，SIMPLEX 0.9MM/2.0MM/3.0MM

Product Description

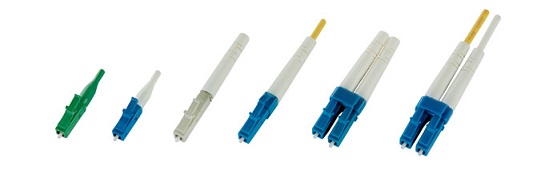

LC Fiber Optic Connector

SPECIFICATION:

1.Low insertion loss and back reflection loss

2.RJ-45 style interface

3.Polarized and color coded (TIA568-A&ISO 11801)

4.UL-rated plastic housing and boot

5.Compact, pull-proof design

6.Behind-the-Wall style short connector

APPLICATIONS:

CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installations; Wide Area Networks

PARAMETER TABLE:

	Single mode Multimode
Insertion loss:	＜0.1dB ＜0.2dB
Return loss:	≥55dB
	≥65dB(APC)
Durability:	＜0.2dB typical change, 500 mating
Operating Temperature:	-40 to +75℃ -40 to +75℃

ORDERING CHOICE:

1.LC SM SX PC

MM DX APC

2.Ferrule size: 125.0μm, 125.5μm, 126.0μm, 127.0μm

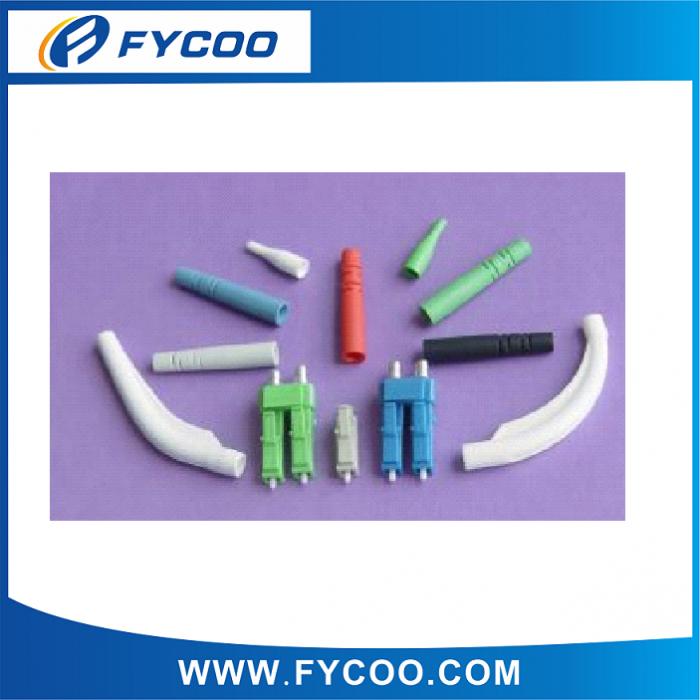

3.Boot type: 45 degrees bent boot, 90 degrees bent boot, slotted boot, smooth boot.

4.Boot size: 0.9mm; 2.0mm; 3.0mm
