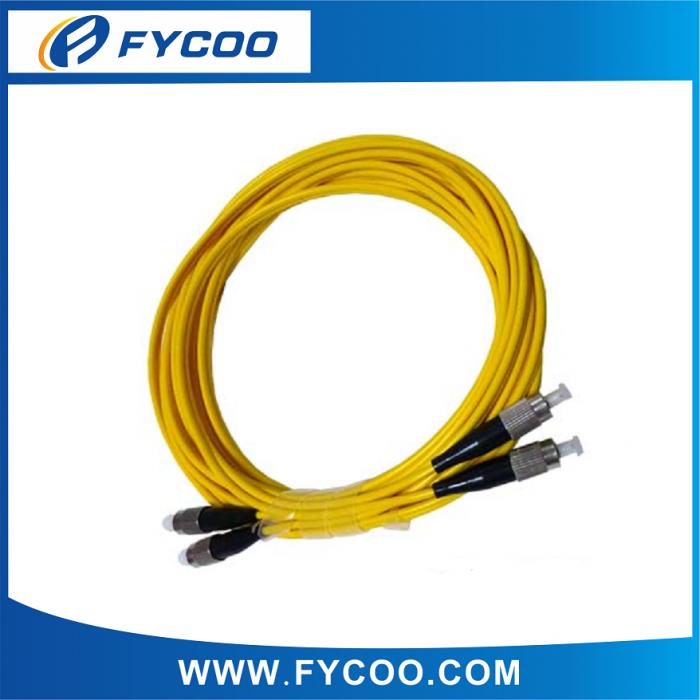

Name:Fiber Optic Patch Cord,FC-FC,SM,DUPLEX,2.0/3.0MM
Model NO.FCFPFSD10

Product Description

Fiber Optic Patch Cord,FC-FC,SM,DUPLEX,2.0/3.0MM



SPECIFICATION:
Fiber Optic Patch Cord,FC-FC,SM,DUPLEX,2.0/3.0MM


FEATURE::
---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE

APPLICATIONS:
CATV; Active device termination; Telecommunication networks; Metro; Local Area Networks; Data processing networks; Test equipment; Premise installation; Wide Area Networks;fiber optic sensors

PARAMETER TABLE:

Single mode

Multimode

Insertion loss:

0.3dB

0.3dB

Return loss:

50dB



60dB(APC)



Repeatability:

0.1



Durability:

0.1dB typical change,1000 mating



Interchangeability:

0.2dB



Operating Temperature:               -40 to +80







ORDER CHOICE:
1.Fan-out patch cord
Simplex/Duplex patch cord
Pigtails
FC/ PC APC  FC /PC SM  FC /PC MM
2. LENGTH:0.5m、1m、2m、3m、5m、10m and others
3. Single mode or Multi-mode
4. Transmission medium: 1). Silicon fiber optic jumper 2). Plastic fiber optic jumper
5. Outer Sheath Material:Ordinary type, the common flame retardant type, low smokes zero halogen type, low smoke zero halogen flame retardant type.


Knowledge:
Definition:
1, the fiber optic patch cable can not over-bending and circling, it will increase the attenuation of light in the transmission process.
2, wave length of fiber optic module in two ends must be consistent. It means two ends of fiber optic module must be same.
3. The out jacket of connector must be used to protect against dust and oil damaging the optical fiber coupling.
Fiber optic patch cable brief introduction
Fiber patch cable is the fiber which connects the computer with equipment. , it is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical and the terminal box.
Struture:
1.it’s structure is similar with the structure of coaxial cable, both of them do not mesh shield.
2. The center is glass core of light transferring
3. Core diameter of Multimode fiber is 15μm ~ 50μm,
4. Core diameter of Single-mode fiber is 8μm ~ 10μm.
5. The core surrounded by a layer of glass envelope with lower refractive index, so the fiber remained in the core
6. A thin plastic coat outside is used to protect the envelope.
