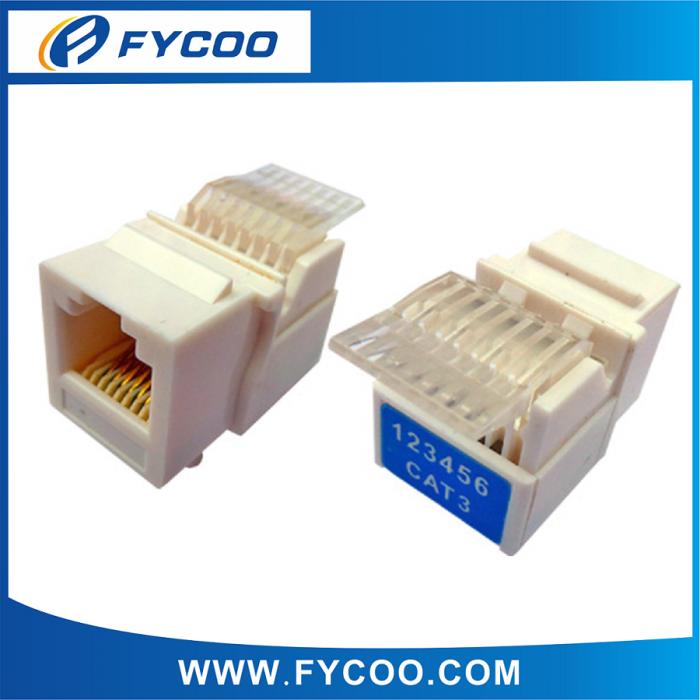

Name:	Telephone Tooless Keystone Jack
Model NO.	FCKJ3U002

ELECTRICAL

1.VOLTAGE RATING : 125 VAC RMS

2.CURRENT RATING : 1.5 AMP

3.CONTACT RESISTANCE : 100 MILLIOHMS MAX

4.INSULATION RESISTANCE : 1000 MEGOHMS MIN @ 500 VDC

5.DIELECTRIC STRENGTH : 750 VAC RMS 60Hz,1MIN

ENVIRONMENTAL:

1.STORAGE : -40° TO +85°

2.OPERATION : 0° TO 70°

CONFORM TO ANSI/TIA/EIA 568B CATEGORY 3

MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F.

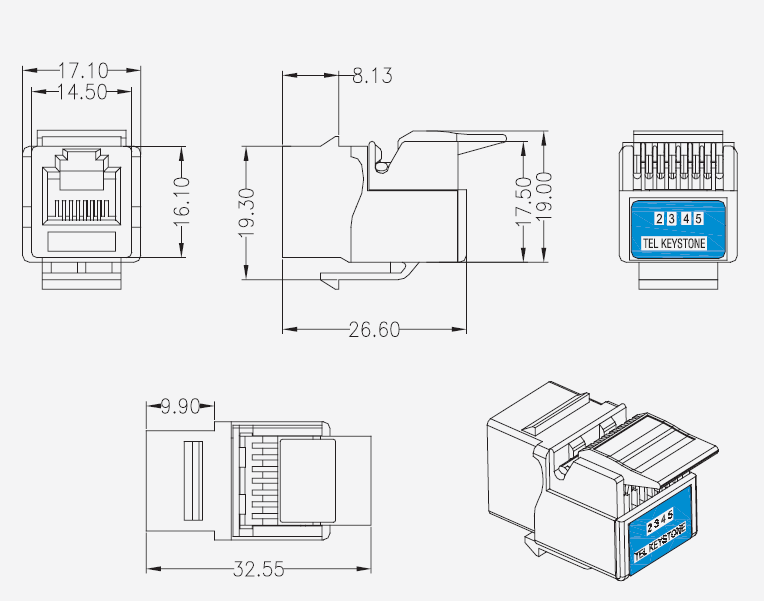

MECHANICAL:

1. HOUSING MATERIAL : PC UL94V-0

2. INSERT MATERIAL : FLAME RETARDANCY ABS UL94V-0

3. PCB MATERIAL : FR-4 THICKNESS:1.6mm

4. CONTACT MATERIAL : PHOSPHOR BRONZE STAMP PIN T=0.35mm

5. IDC CONTACT MATERIAL : PHOSPHOR BRONZE T=0.50mm WITH NICKEL PLATING

6. WIRE : AWG 24~26
