Product Description

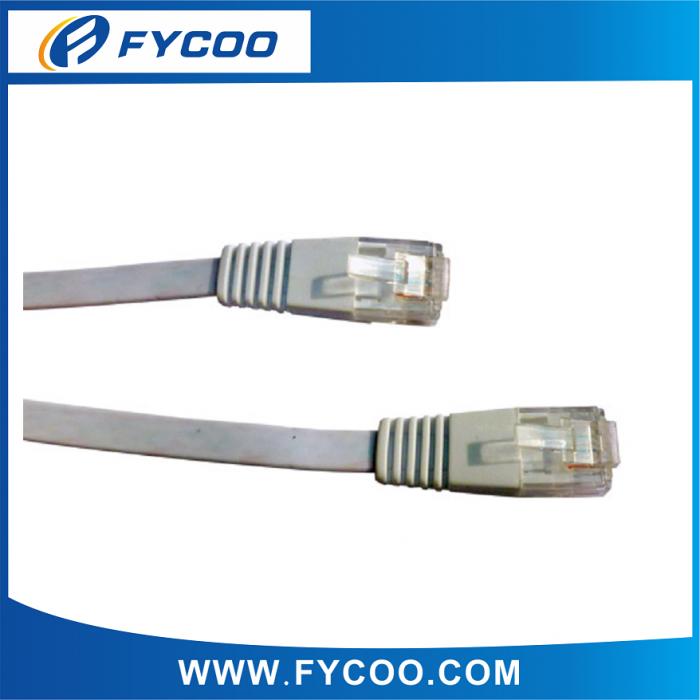

Cat.6 UTP Flat Patch Cord
FEATURE:
Cat.6 Flat cable, FTP, 500 MHz, (1PX30AWG+Foil+drain wire) x4p+PVC+RJ45X2PCS, Gold plated pins, Pass fluke test, Different length optional
SPECIFICATION:
ITEM |
|
CAT6 UTP 7/0.20BC flat patch cable |
|
No. of Cord. |
|
4 Pair |
|
Conductor |
Material |
Bare Copper Wire
Stranded |
|
|
Construction |
30AWG; 7 / 0.10 ± |
|
Insulation |
Material |
Polyethylene |
|
|
Thickness |
0.18± |
|
|
Diameter |
0.95 ± |
|
|
Material |
PVC |
|
Jacket |
Thickness |
|
|
|
Diameter |
1.8* |
|
|
Color |
optional |
|
|
Lenght |
optional |
|
Marking |
optional |
|
|
Shielding1 |
Material |
Mylar Spirally Wrapped |
|
|
Coverage |
100%
coverage with 25%
overlapping |
|
Drain Wire |
Material |
Aluminum Magnesium metal |
|
|
Construction |
1 / 0.40 ± |
|
ELECTRICAL
PROPERTIES |
|
||
Conductor Resistance |
Max. 93.8
ohms/km at |
||
Insulation Resistance
|
Min. 100
mega ohms-km at |
||
Dielectric Test |
500V AC /1 min ; No Breakdown |
||
Impedance |
100 ohms ± 15% |
||
Temperature Rating |
|
||
Voltage Rating |
30V |

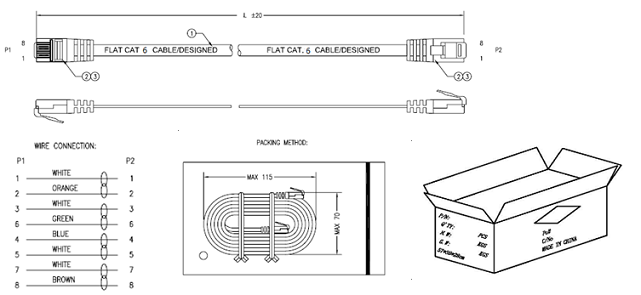

DRAWING&PACKING:
