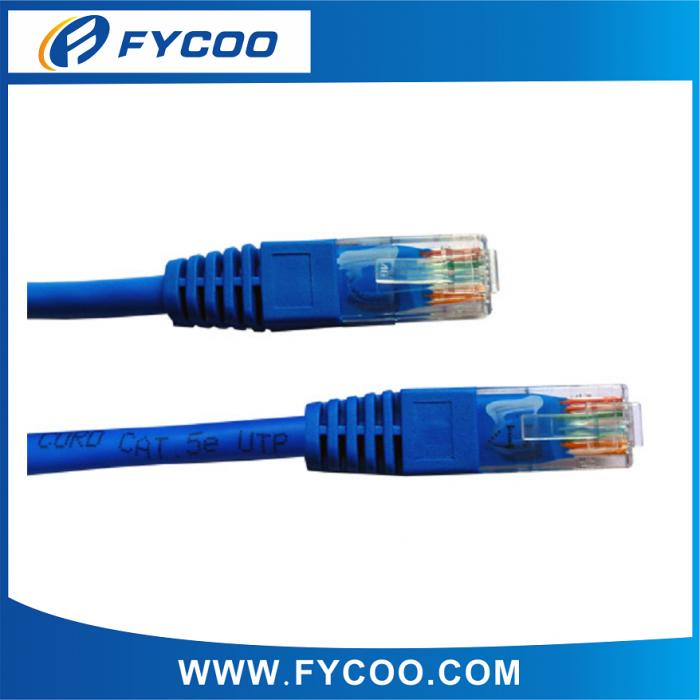

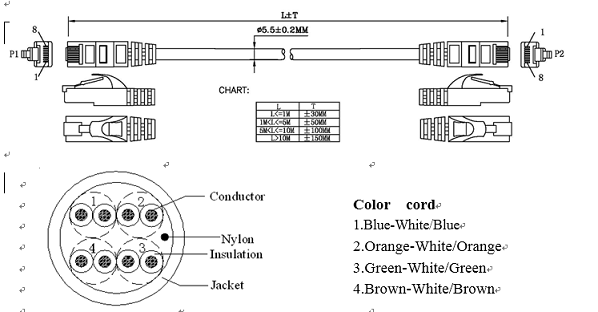

Cat.5e UTP Patch Cord

ITEM

CAT5E UTP 7/0.20BC patch cable

No. of   Cord.

4  Pair

Conductor

Material

Bare  Copper  Wire  Stranded

Construction

24AWG; 7 / 0.20 ± 0.008  mm

Insulation

Material

Polyethylene

Thickness

0.18±0.02  mm

Diameter

0.95 ± 0.05 mm

Inner Layer

Direction

S

Pitch REF

30mm underneath

Outside Layer

Direction

S

Pitch  REF

100±10mm

Material

PVC

Jacket

Thickness

0.50  mm(Min. Thichness: 0.48mm)

Diameter

5.3  ±  0.20  mm

Color

yellow

Lenght

0.5m

Marking

optional

ELECTRICAL  PROPERTIES

Conductor Resistance

Max.  93.8  ohms/km at 20℃

Insulation Resistance

Min.  100  mega  ohms-km at 20℃

Dielectric Test

500V AC /1 min  ; No Breakdown

Impedance

100 ohms ± 15%

Temperature Rating

60℃

Voltage Rating

30V
